Jan's Access Basics: Query Design Toolbar

The Print, Print Preview, and Spell Check buttons are not available in the Design view for queries. To print out your design choices for the query you must use the Documenter utility, from the menu Tools | Analyze | Documenter

Button: Handle

At the left end of a toolbar is an area called the handle, which looks a bit different in different versions of MS Access. Hover over this area and the mouse pointer changes to the Move shape

. Drag while in the Move shape and the toolbar will move. If you drag perpendicular to the bar, it will undock and float. Drag to another edge of the window and the toolbar will dock there.

Button: Views

The Views button toggles between Datasheet and Design or Print Preview and Design. The arrow opens a list of all of the available views.

Button: Save

The Save button is used to save the current object that is open for editing.

It does not save the whole database. It does not save a record. The button is grayed out

in the Database bar since there is no object selected to be saved.

Saving records automatically: By default, MS Access automatically saves a record when you switch to a new record, or when you close the active object where you were adding or editing records, or when you close the database or Access itself.

Save immediately: The menu command | will save the current record before you leave it. SHIFT + ENTER is the key combo to save a record immediately.

Saving database with new name: To make a copy of a database with a new name is rather awkward.

Button: Search

The Search button opens the Basic Search task pane. In this pane you can search your computer or network locations for files, especially Office documents.

Button: Print

The Print dialog does NOT appear. Do not use this button unless you are SURE that the print settings are what you want. Be sure that you want to print the whole thing!!

Button: Print Preview

The Print Preview button changes the view to show how the current object will look if printed.

Button: Spell Check

Buttons: Cut, Copy, Paste

The Cut, Copy, and Paste buttons work as usual for database objects, the contents of fields, and design elements for forms and reports.

Cut removes the selected item and copies it to the Windows Clipboard.
Keyboard shortcut CTRL + X

Copy leaves the selected item in place and copies it to the Windows Clipboard.
Keyboard shortcut CTRL + C

Paste inserts the contents of the Windows Clipboard.
Keyboard shortcut CTRL + V.

The Windows Clipboard can only remember one thing at a time, but the Office Clipboard task pane can remember the last 24 items copied from MS Office programs.

Task Pane: Clipboard Options - Collect without showing

The Office Clipboard task pane has to be active, either by being displayed on screen or the Collect Without Showing Office Clipboard option must be on, at the bottom of the Clipboard task pane.

Buttons: Undo/Redo

The Undo and Redo buttons let you change your mind about what you just did. These buttons are gray when there is nothing in the action list.

Design view: Undo or redo the 20 most recent actions.
The down arrow opens the full list of actions. All actions above the one you pick will be undone or redone. The list of actions is cleared when you leave Design view.

Editing Records: You can undo actions only for the current record. The Redo button does not show.

There is no list of actions, but clicking the Undo button repeatedly will back up through the changes you made for this record. You cannot redo what you have undone for records. The Undo list is cleared when you move to a new record or apply a filter or switch to a different window.

Undo with menu:
| The Edit menu will show at the top of the menu list the last action, like Undo Move or Undo Property Setting. The last action that you did with Undo will show as .

If you leave a record, you can Undo Saved Record only if you have not made a change in another record.

Editing Form/Report - Revert with menu: For a form or report, you can revert to the last saved version after making changes to the form/report. Use the menu |. You cannot redo those changes. This is handy for dumping a whole set of changes that you made since the last save.

Button: Types

There are several different types of queries. The Types button shows the icon for the current query's type. The down arrow

opens a list of all the types.

The Select query is the most commonly used type of query. This is the type to use to sort or filter records.

Button: Run

For a Select query the view changes to the datasheet of records that the query selects. For action queries like Make Table or Delete Records, you will not see a new view. You may have to respond to a confirmation message before the action is actually performed.

Button: Show Table

The Show Table button opens a dialog where you can select the tables and queries that you want to use in designing the current query.

Add a table/query: Select a table or query and click the Add button in the dialog.

The selected table or query appears in the top area of the Query Design View. Then you can drag the fields that you want to use down to the bottom area of the design view.

Remove a table/query: Click on the table/query in the Design View and press the Delete key.

Unrelated tables: Queries that use unrelated tables will include all possible combinations of data. That is usually not what you want!

Button: Totals

The Totals button toggles on and off a row for calculating Totals in the bottom section of the query design view. You can use several functions in the Total row, including Avg, Count, Sum, Min, Max.

When you include a Total row, you must also select a field to group the records on. The example here counts the number of students (Total using the Count function) in each class (Group by).

A query that uses the Total row includes only two fields: the field to calculate with and the field to group on.

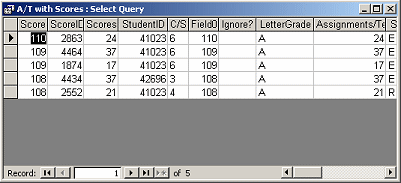

Button: Top Values

The Top Values button is used to restrict the results of your query to certain top values.

In the example here the results show the 5 highest scores:
Top Value = 5
Scores field is sorted in descending order and is the first sorted field.

Button: Properties

The Properties buttons opens a dialog of the various properties available for the selected object. Objects in the Database window do not have many properties. But objects in the Design view of a form or report often have dozens of properties that can be changed from the defaults. These properties include formatting choices as well as event procedures that control what shows or is hidden and what is calculated.

Button: Build

An expression is used to calculate a value for a control or for a criteria or a validation rule. The calculated value can be either a number or a combination of text values.

An expression is a combination of identifiers, operators, functions, and values.

identifiers like [Bonus Points]![StudentID]
where the first identifier is the table name and the second is the field name.
operators like + - * / > < = &
functions like Average, Max, LCase, IsNull
values

Text: To concatenante text or text and values into a single string:
=[LastName] & ", " & [FirstName] & " "& [MiddleName]
="Total Number of scores for A/T " & [A/T ID]

Button: Database Window

The Database Window button brings that window to the top. The Database window remains open as long as the database is open. You can minimize it or cover it with other windows.

A database programmer can hide the Database window and this button to keep users from interfering in the careful work he has done.

Button: New Object

The New Object button shows the icon for what you chose the last time. The arrow opens a list of links.

The AutoForm and AutoReport choices will create a basic form or report for the table or query that is currently selected. You can, of course, change the layout and the formatting afterwards.

The remaining choices open the New dialog for the object type or the Design view for macros and modules.

Button: Help

The Help button looks and behaves differently in Access 2002 than in Access 2003.

Opens the Help dialog with tabs for Contents, Answer Wizard, and Index.

Dialog: Help (2002)

Opens the Help task pane.

Task Pane: Help (2003)

Button: Toolbar Options

The down arrow at the far right of a toolbar opens a cascading menu: Add or Remove Buttons. You can customize the toolbar by adding or removing buttons.

A double arrow above the down arrow tells you that the window is too narrow to show all of the buttons on the bar. Clicking the arrow in this case will open a palette of the hidden buttons, in addition to the menu Add or Remove Buttons.

All Office programs display the most recently used buttons when there is not room for all of them. As you continue to work in a small window, which buttons are showing will change. This can be confusing!
