Jan's Working with Databases

Tables & Queries: Queries: Append Query

Button: Append QueryAn Append query puts a copy of the records and fields that you select into an existing table.

What good is an append query?

  • To add partial records which share the same data to a table.
    This could save a lot of selecting and typing and ensures that you create the correct number of similar records. (The example below is this type.) Of course some data will have to be entered separately for each record.

  • The start of a two-step process to move records:

    • Append records to a different table

    • Delete the records from the original table
  • As part of a background process that uses a temporary table in a complex procedure.

WarningDanger with an append query - Nothing will stop you or warn you about running the query again and appending another copy of the same records.  Access assumes that you knew what you were doing! The exception is an append query that includes the primary key for the table. Access will not let you repeat values for a primary key.

It bears repeating:

WarningNo Undo: You cannot "undo" an action query's action.

TipIcon: Back Up diskBackup first: Before running an action query, be sure you have a current backup of the database or an extra copy of the table that will change.

TipVerify selection first: Be sure the query selected the records that you thought you did! View the datasheet to see the query's datasheet. Check the records carefully.  Then, run the action query with the Run button Icon: Run.


Example: Append Query

The query Append to Scores - Pick A/T in the Language Arts Classes database creates a partial record in the Scores table for each student for the Assignment/Test ID number that the teacher enters. (There must already be a matching record in the Assignment/Test table.)

Problem: The Scores table needs a record for each assignment or test for each of 92 students. How boring and tedious to create all 92 manually!

Solution: Use an append query to create partial records automatically. The teacher (me!) enters an ID number for an assignment or test. Running the query adds a record to Scores for each student for the selected assignment or test. There are no scores yet. After running this append query, I could then open the Scores table or the Scores form and finish the newly appended records by typing in a score for each student. If a student did not have to do the assignment or test, I could delete the score record for that StudentID or mark it to be ignored in the Ignore? field.

Steps in the process:

  • Query Design View: Append to Scores - pick A/TCreate a Select query by selecting the source tables/queries and the fields that you want to append to the destination table.

  • Apply any sorting and criteria.
    (This one includes a parameter.)

  • Change the select query to an Append query by clicking the Append Query button. A dialog asks for the name of the table to which you will append records. A new row, Append To, appears in the Design grid.

  • Match fields: Each column that shows in the query results must have a matching field in the destination table. You might use some fields to sort or select records that do not themselves show in the results.

    Make sure that the field in the Append To row is the one that matches the field at the top of that column. Access is pretty smart but sometimes it guesses wrong about this if the field names are not exactly the same.

  • Query Datasheet View: Append to Scores - pick A/TView the datasheet to check what will be appended.
    (If you are experimenting with the Language Arts database, enter 90 as the assignment number. This assignment has been added to the table Assignments/Tests already.)
    Yes, the query creates a record for each of the 92 students for assignment ID 90.

  • Run the query by clicking the Run button.

  • Dialog: Tells how many rows will be appended. Very helpful to know in many situations.

    Message: You are about to append 92 row(s).


  • Table Datasheet View: Scores table, after appending records for assignment ID 88View results: The table with the newly appended records does not open automatically. You must open the destination table yourself to view the appended records.

About the blank fields: The LetterGrade values were added later with an Update query, which we will look at shortly. With Access 2007, 2010, 2013, and 2016, we can use a Calculated field in the Scores table to get a letter grade. A nice feature!

The Ignore? field is a Yes/No field that would normally be blank. A Yes in this field would mean that the score would not be included in averages.

Icon: ConfusionPoint of Confusion/Disadvantage: Unnecessary records are created by this append query if the assignment or test was not actually assigned to all classes or to all students! A/T ID 87 is an example of this. Assignment 87 was a spelling test that was not assigned to class D for scheduling reasons. The C/S value of 8 is the code for class D and Spelling. So, the records for assignment 87 and C/S value of 8 have no scores.

The unwanted records could be deleted manually easily since they were adjacent to each other. Or a simple Delete query would work, too.

AutoNumbers: The AutoNumber primary key will not reuse the ID numbers of deleted records. That is why the ID numbers for the new records run to over 9000 when there are only 7537 records in the table. Quite a number of records were deleted along the way.

If there were going to be a lot of assignments that would not be given to all three classes, the query could be changed to include a parameter for the C/S field, which picks out the class and subject of the assignment. I don't know why I didn't do that at the time.


Icon: Step-by-Step

Step-by-Step: Append Query

 Icon: Step-by-Step

What you will learn:

to add a record to related table
to design a query to append partial records
to create a Select query
to change the query to an Append query
to view results and complete partial records added by Append query


Start with: Class disk, Projects database from previous lesson open.

An append query adds new records to an existing table by copying data from other tables or queries. One use for this kind of query is to create partial records to be sure that the correct number of records are created.

You will add a new project to the Projects table. You want to assign all staff members in Argentina to the new project. You will use a query to select those staff members and append them to the Project Staff table. Since they will not all have the same job for the project, you will have to enter the data for the Job field separately.

Add Record to Projects Table

  1. Icon: Datasheet View Open the Projects table to Datasheet View.
  2. Add a new record with the following information:

    ProjectName:           Celebrate Argentina
    ProjectDescription:    Designing tours that display the beauty and history of Argentina
    Cost:                     Delete the default value of 0
    Budget:                  $4000

    Be sure to TAB out of the record or click on the Save Record button on the Home ribbon tab.

    Table Datasheet View: Projects - with new record

  3. Button: Save (Access 2010) Save and close the Projects table.


What fields need to be in the append query?

The next step is to enter the staff for the new project in the Project Staff table. You will use an Append query to save some typing but mostly for the practice.

  1. Table Design View: Project StaffIcon: Design View Open the table Project Staff in Table Design View.
    Your query will append records to this table.

  2. Inspect the table: What fields will be the same for all staff members assigned to the new project or can be predicted? Those should be in your append query.
    • Project StaffID: AutoNumber field, so you cannot enter values for it.
    • Job field: Different for each staff member so you will have to manual enter the data
    • Project's ID = 8.
    • EmployeeID: All employees in Argentina are assigned to this project. You can use criteria to pick those out for the append query.

    So you will need in the append query only two fields: ProjectID and EmployeeID

  3. Close the Project Staff table.


Create Select Query

  1. Icon: Design View Create a new query based on the Staff and Projects tables.
    These tables do not have a relationship but for this query you can use fields from both because the ProjectID value will be the same for all of the records that you want to create.

  2. From the Staff table, drag the EmployeeID and Country/Region fields down to the grid.

  3. From the Projects table, drag the ProjectID field to the grid.

  4. Query Design View: select records for append queryAdd criteria:
    Country/Region = argentina
    ProjectID = 8


    Since these two tables are not joined, all records in the datasheet will show both 'argentina' and '8'.


  5. Query Datasheet View: appending staff to Project StaffIcon: Datasheet View View the datasheet.
    There are five records out of the original 9. All of these records show ProjectID = 8 and Country/Region = Argentina. Excellent!

  6. Icon: Design View Switch back to Design View.



Change to Append Query

  1. Click the Query Type button and click on Append Query Button: Append Query in the Query Tools: Design ribbon tab.
    A dialog appears for you to choose the table to which you want to append the records. It must be one in the list but it can be in a different database!

  2. Dialog: AppendClick the arrow at the right end of the Table Name box and select the table Project Staff.

  3. Click on OK.
    The dialog closed and the query opens in Query Design View with a new row, Append To. The values in this new row tell Access how to match fields between the query results and the table to which you are appending records.

    Query Design View: appending staff to Project StaffAccess automatically matches the EmployeeID and ProjectID fields to fields with the same name in the Project Staff table. The field Country/Region does not have a matching field in the Project Staff table. It is being used just to select records. Sometimes Access matches fields incorrectly. Read the grid carefully!

    Notice that the grid does NOT show the table to which you will append! When in doubt, make the query a Select query again and change to Append again. The dialog for the table will appear, already filled in.

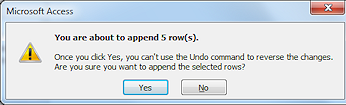

  4. Message: You are about to append 5 row(s) (Access 2010)

    Icon: Run Run the query.
    A message tells you that you will append 5 rows, but does not tell you to which table.

  5. Click on Yes.
    The query runs but nothing appears to change.

  6. Button: Save (Access 2010) Save the query as QAppend to Project Staff and close it.
    You would not normally need to save this query.



View Results and Complete Records by Entering Values for Job

  1. Icon: Datasheet View Open the table Project Staff in Datasheet View.
    There are new records for the staff for project #8.

    The EmployeeID field is showing a name instead of a number. Do you remember why?

    In the design of this table, you made EmployeeID a Lookup field based on the query QStaff-FullName. The field contains an ID number, but displays the full name for your convenience.

    It is easier to remember employees by their names instead of their ID numbers! If only the ID number showed, it would be easy to make a mistake when you start typing in jobs.

  2. Table Datasheet View: Project StaffComplete the records by entering the following jobs:
    Luis P Perez = Project Director
    Juanita Gonzales = Asst. Director
    Hector Chavez  = Events
    William Eric Gardner = Tours
    Wilhelm G. Heinz = Marketing

    The order of employees in the table may be different from the illustration, at least it was between Access 2010 and 2007 for me. Be careful to match the name to the job!

  3. Close the table.
